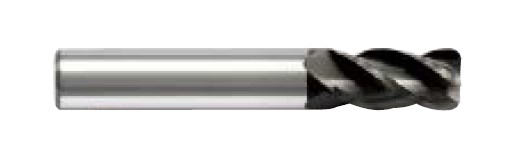

Фреза т/с UP210-R4

4 режущие кромки; Радиус закругления вершины.

Наименование D Lc L d
UP100-R2-01001 1 3 0.1 50 4
UP100-R2-02002 2 6 0.2 50 4
UP100-R2-03002 3 9 0.2 50 4
UP100-R2-63002 3 9 0.2 50 6
UP100-R2-03003 3 9 0.3 50 4
UP100-R2-63003 3 9 0.3 50 6
UP100-R2-03005 3 9 0.5 50 4
UP100-R2-63005 3 9 0.5 50 6
UP100-R2-04002 4 11 0.2 50 4
UP100-R2-64002 4 11 0.2 50 6
UP100-R2-04003 4 11 0.3 50 4
UP100-R2-64003 4 11 0.3 50 6
UP100-R2-04005 4 11 0.5 50 4
UP100-R2-64005 4 11 0.5 50 6
UP100-R2-04010 4 11 1 50 4
UP100-R2-05002 5 13 0.2 50 6
UP100-R2-05003 5 13 0.3 50 6
UP100-R2-05005 5 13 0.5 50 6
UP100-R2-05010 5 13 1 50 6
UP100-R2-05015 5 13 1.5 50 6
UP100-R2-06005 6 16 0.5 50 6
UP100-R2-06010 6 16 1 50 6
UP100-R2-06015 6 16 1.5 50 6
UP100-R2-06020 6 16 2 50 6
UP100-R2-08003 8 20 0.3 60 8
UP100-R2-08005 8 20 0.5 60 8
UP100-R2-08010 8 20 1 60 8
UP100-R2-10015 10 25 1.5 75 10
UP100-R2-10020 10 25 2 75 10
UP100-R2-10030 10 25 3 75 10
UP100-R2-12005 12 30 0.5 75 12
UP100-R2-12010 12 30 1 75 12
Форма пластины (негативные)
Форма пластины (позитивные)
Вид обработки
Mатериал K, P
